A bright choice!

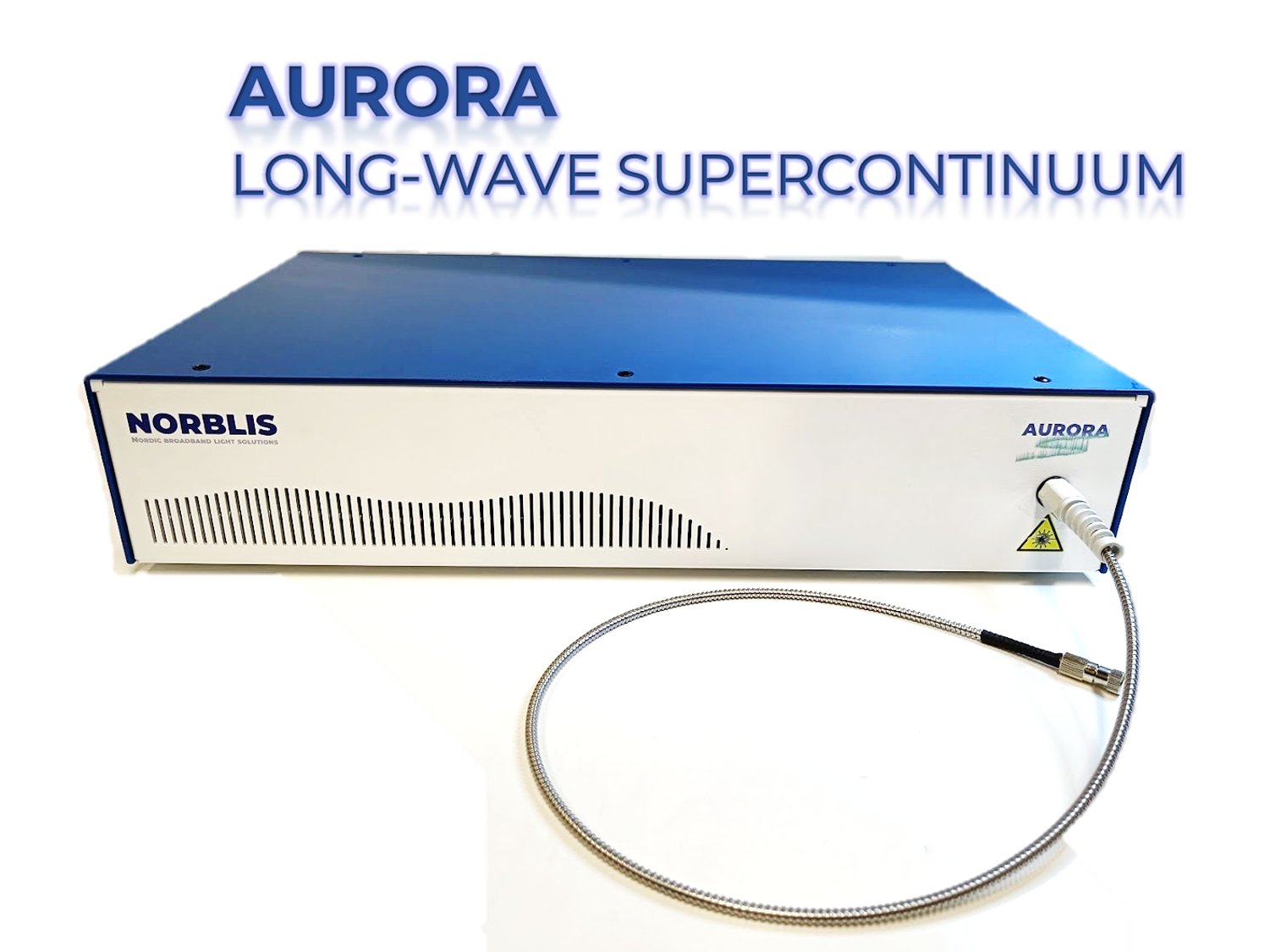

The Aurora mid-IR supercontinuum laser is the light source of choice for applications requiring a near diffraction-limited output beam with a wide bandwidth and high output power.

Applications include

  • Atmospheric trace gas sensing
  • Multi-species spectroscopy
  • Optical coherence tomography
  • Microspectroscopy
  • Optical fiber and waveguide characterization

 Typical specifications

Bandwidth 2-10 μm
Avg. Power 50 mW
Pulse rep. rate 3 MHz
Power stability 2 %
Warm-up 45 min
Dimensions (WxLxH) 500x300x100 mm

Customization options

  • Beam delivery: Collimated free-space (more long-term robust) or connectorized FC/PC output (subject to special warranty conditons).
