The Star to Guide the Way!
The Polaris mid-IR supercontinuum laser is the light source of choice for applications requiring a near diffraction-limited output beam with a wide bandwidth and high output power.
We offer two versions of the POLARIS, the 4.2 and 4.6, named after their approximate spectral cut-off in the infrared. The 4.2 can provide higher power and increased flatness, while the 4.6 offers increased signal beyond 4000 nm with higher spectral stability.
Applications include
- Atmospheric trace gas sensing
- Multi-species spectroscopy
- Optical coherence tomography
- Microspectroscopy
- Optical fiber and waveguide characterization
Typical specifications
| |
POLARIS-4.2 |
POLARIS-4.6 |
| Bandwidth |
1-4.2 μm |
1-4.6 μm |
| Avg. Power |
800 mW |
600 mW |
| Pulse rep. rate |
1-3 MHz |
1-3 MHz |
| Power stability* |
±2 % |
±2 % |
| Warm-up |
30 min |
30 min |
| Dimensions (WxLxH) |
320x230x130 mm |
320x230x130 mm |
* at stable room temperature.

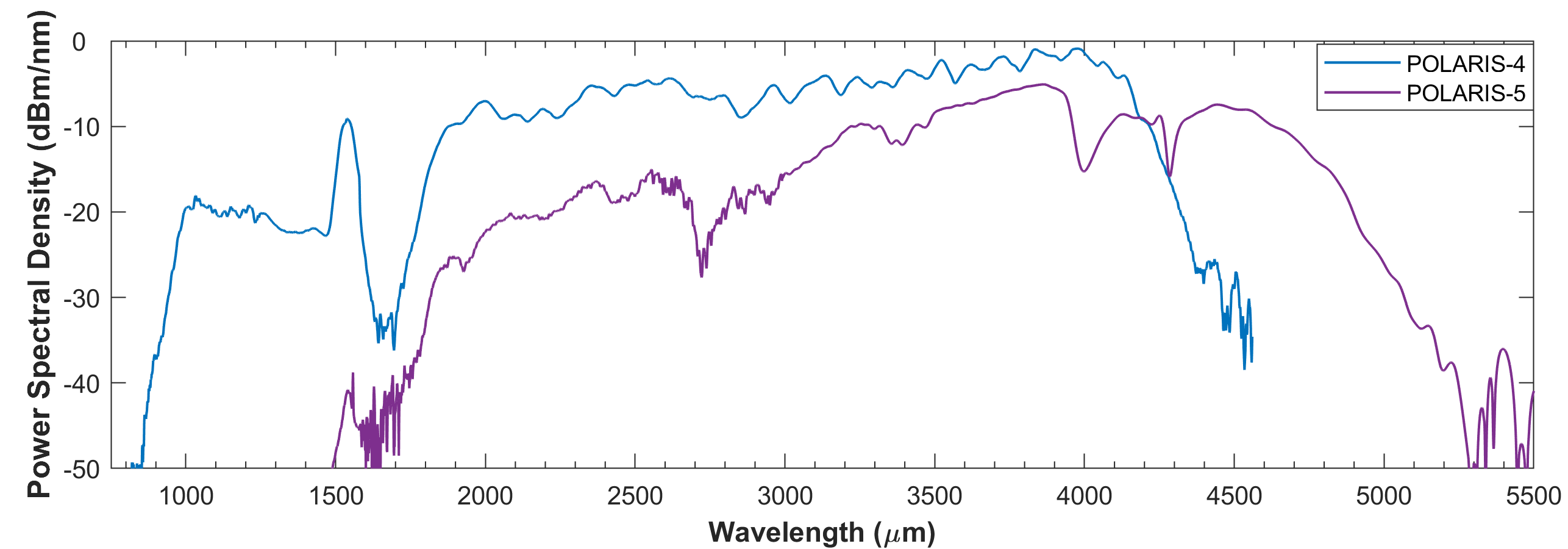

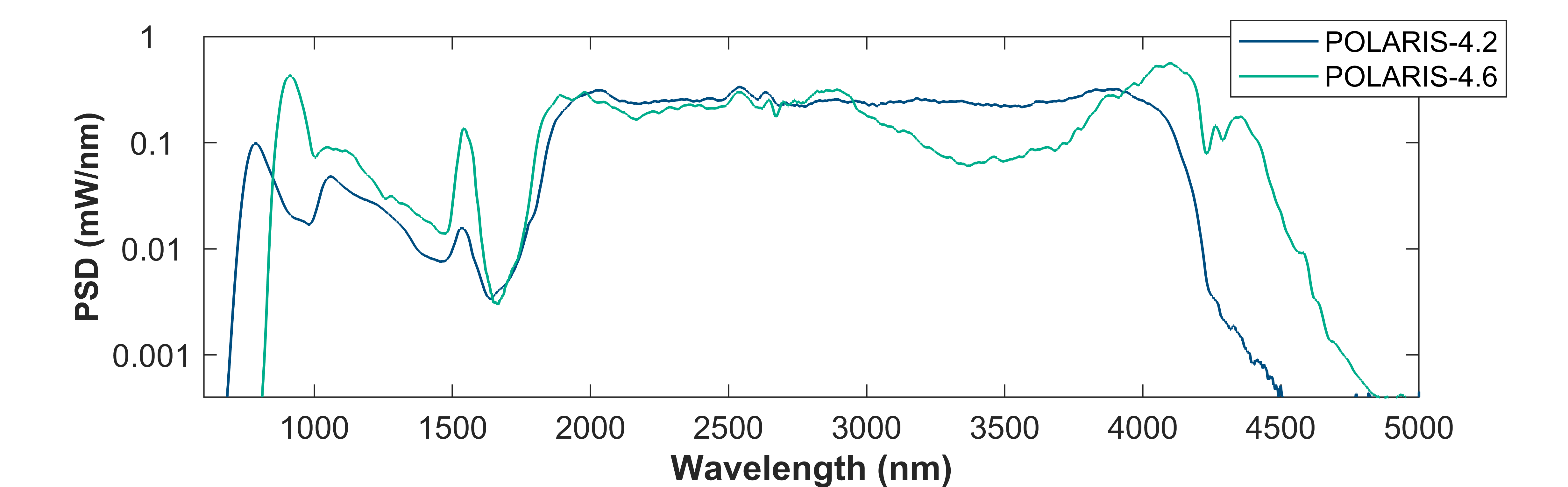

Typical spectrum
Customization options
- Beam delivery: Collimated free-space (more long-term robust) or connectorized FC/APC output (subject to special warranty conditons).
- Optical tap/trigger: An optical tap can be introduced to provide a reference signal for optical triggering. The signal will typically have >20 mW of average power.
|
