NORBLIS — Mid-Infrared Laser Systems

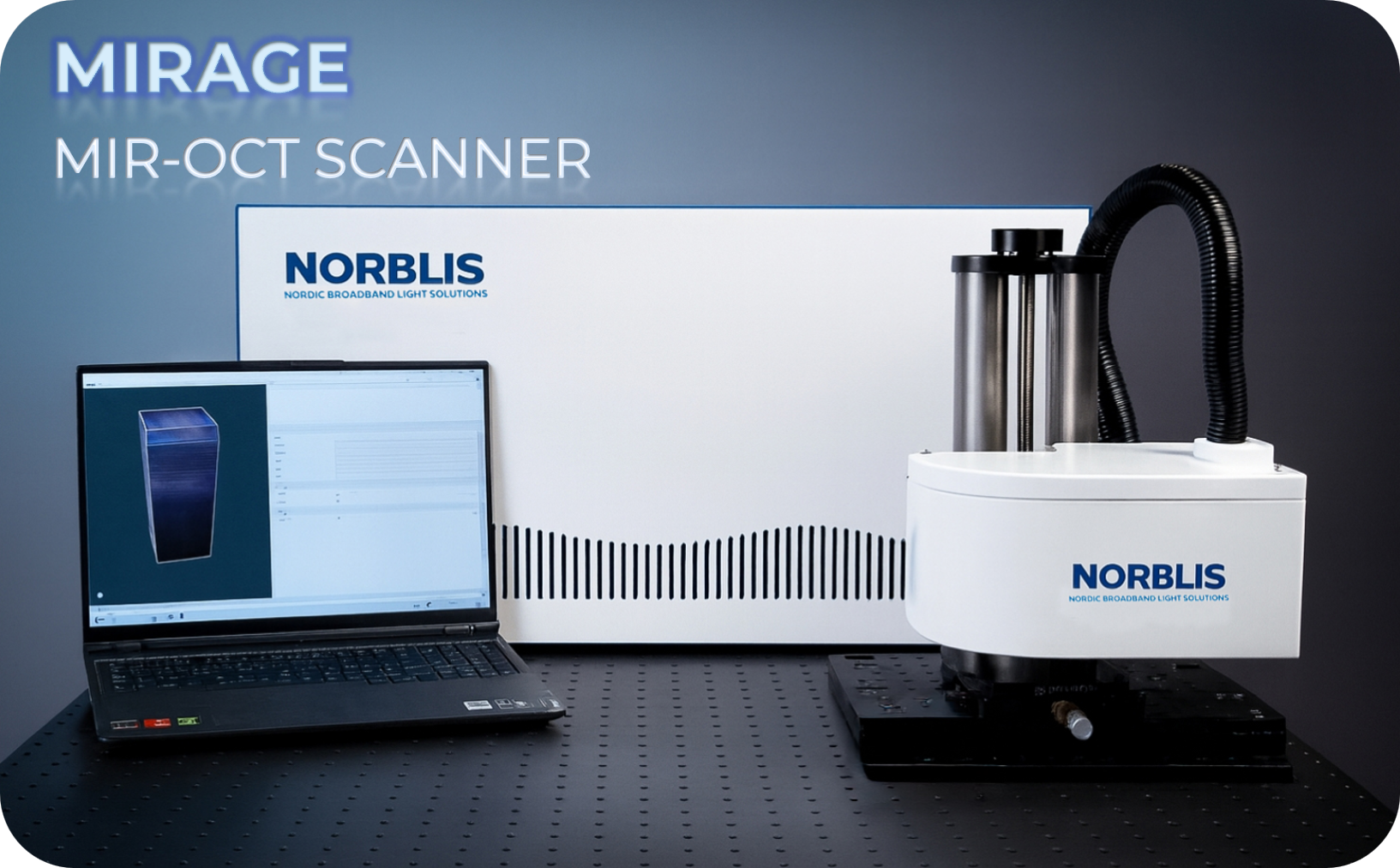

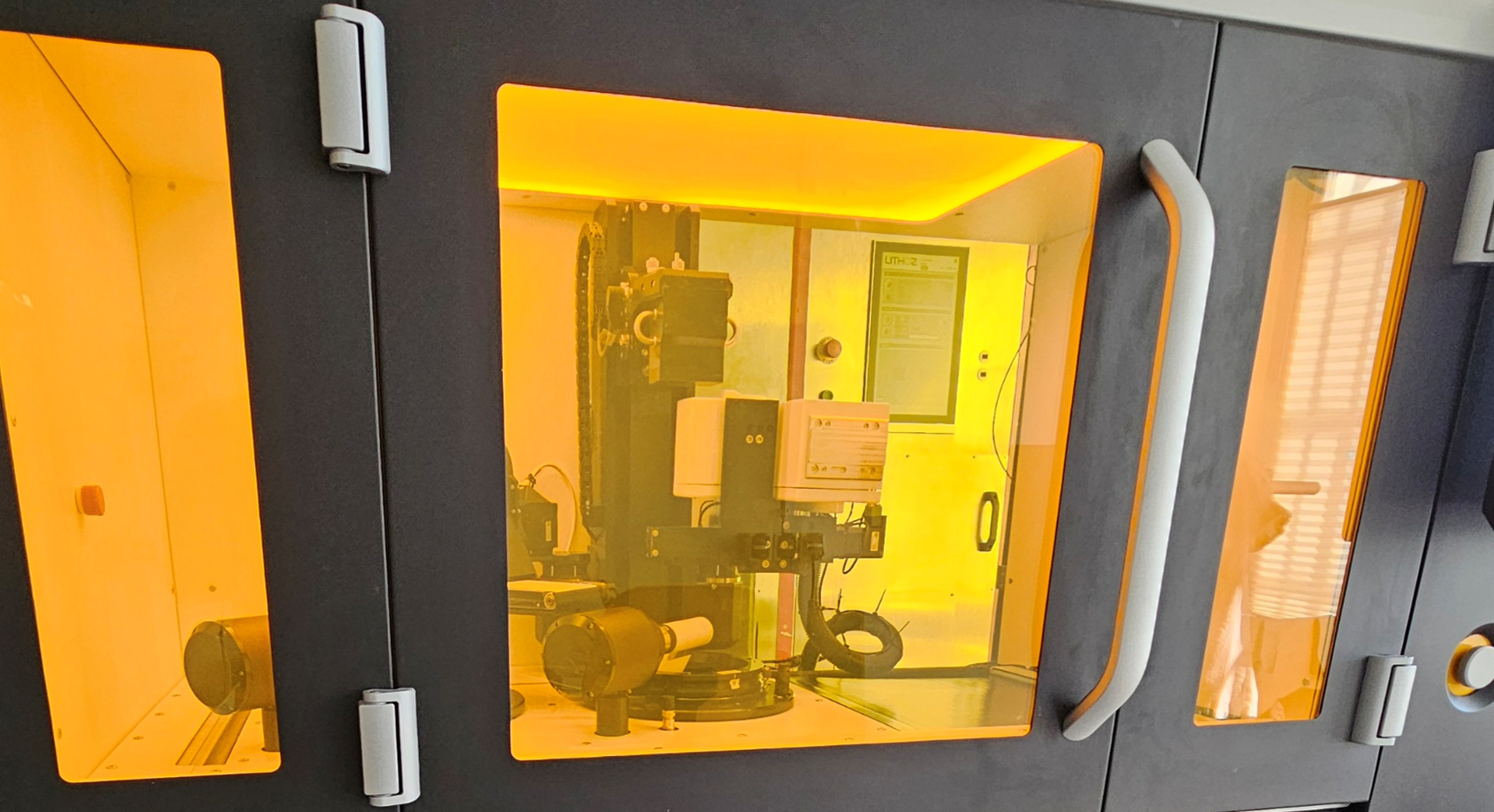

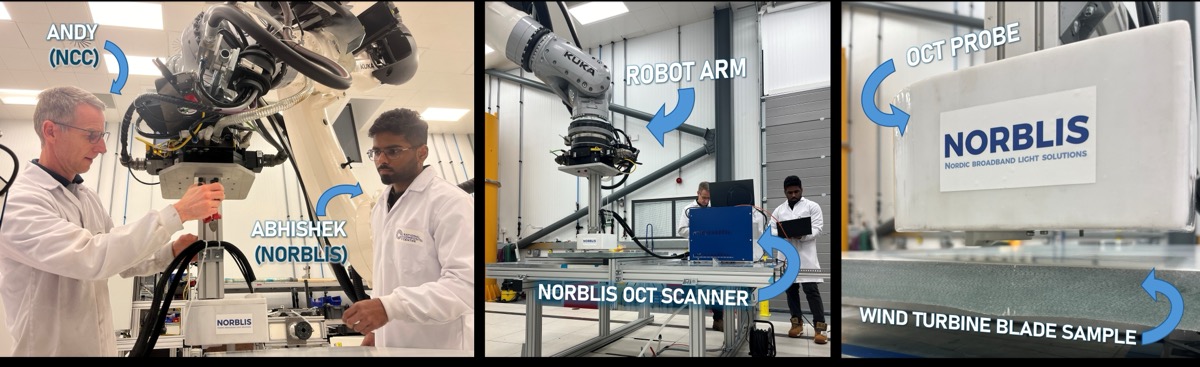

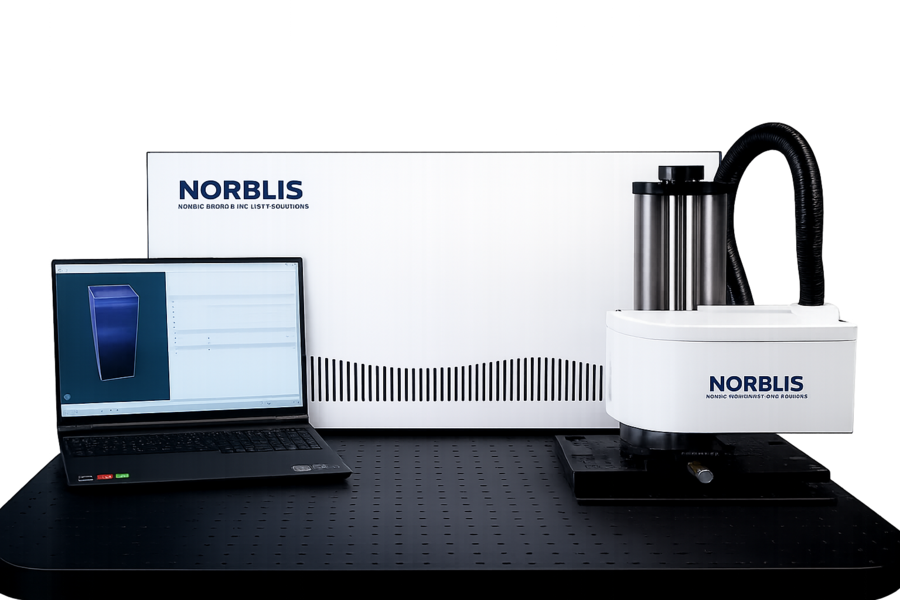

Mid-IR OCT Scanner

MIRAGE

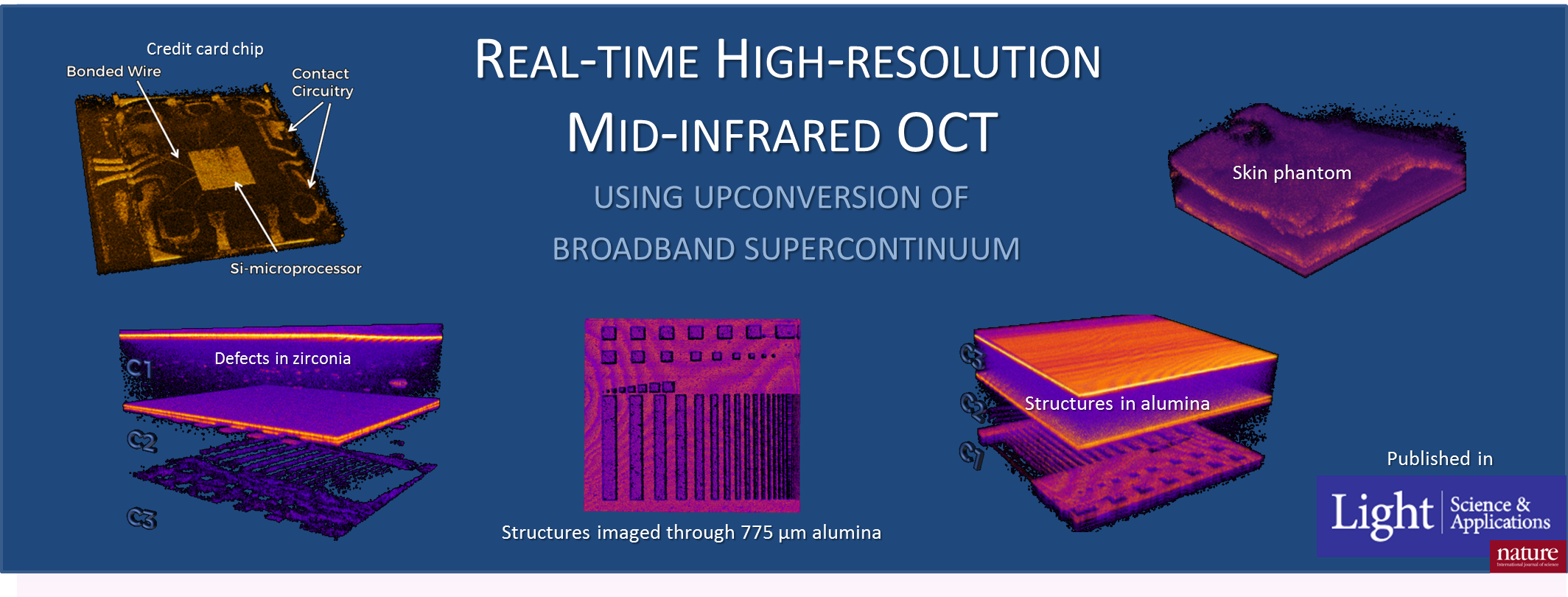

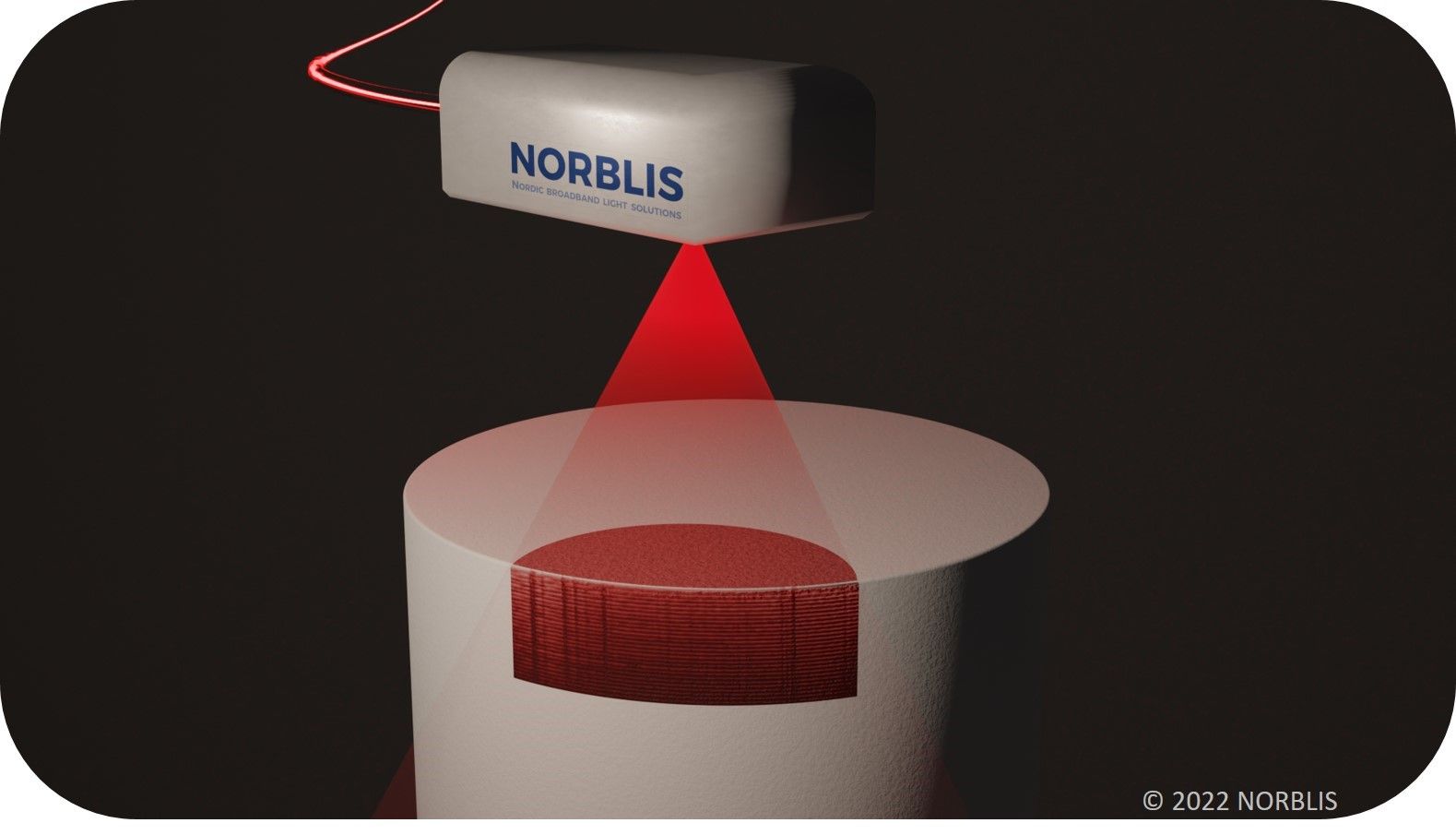

Mid-infrared OCT system based on NORBLIS supercontinuum laser technology. Built for 3D sub-surface inspection of coatings, ceramics, resins, composites, polymers, laminates, semiconductors and more.

Key Features

Non-contact
Non-ionizing
Non-destructive
High resolution

Measures

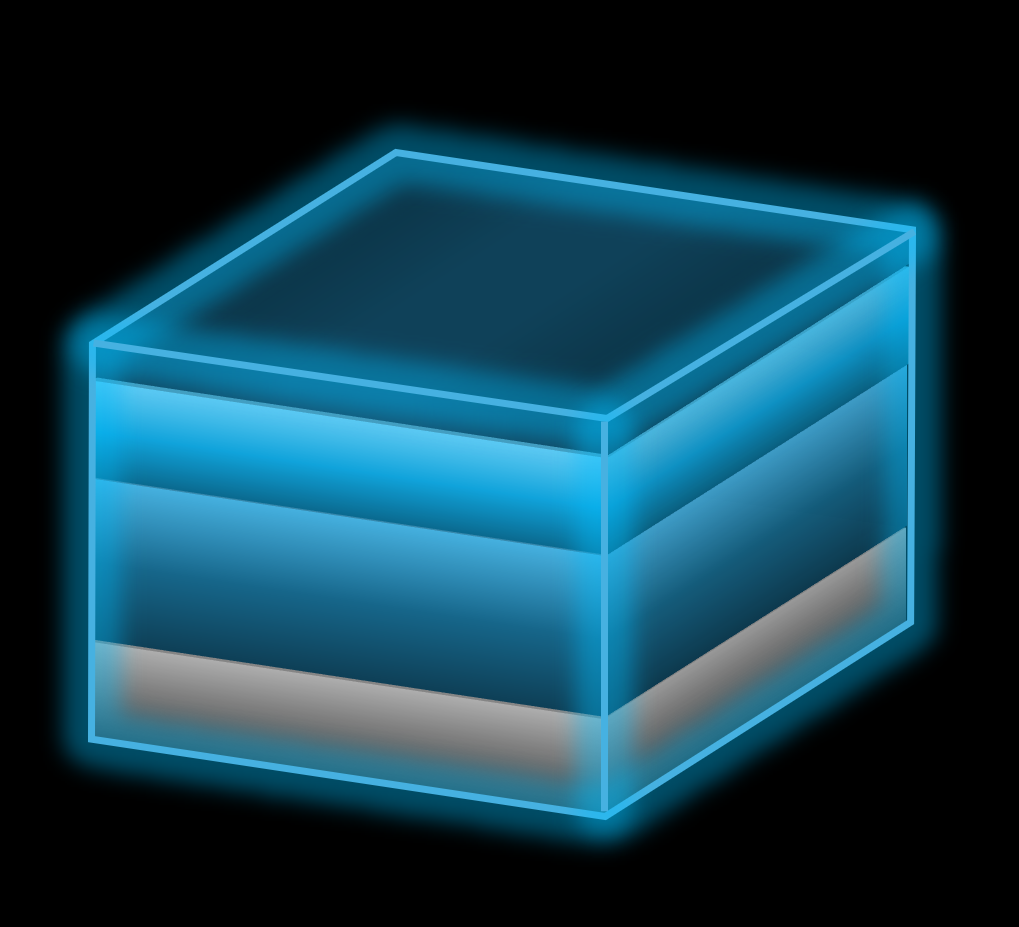

Layer thickness and uniformity

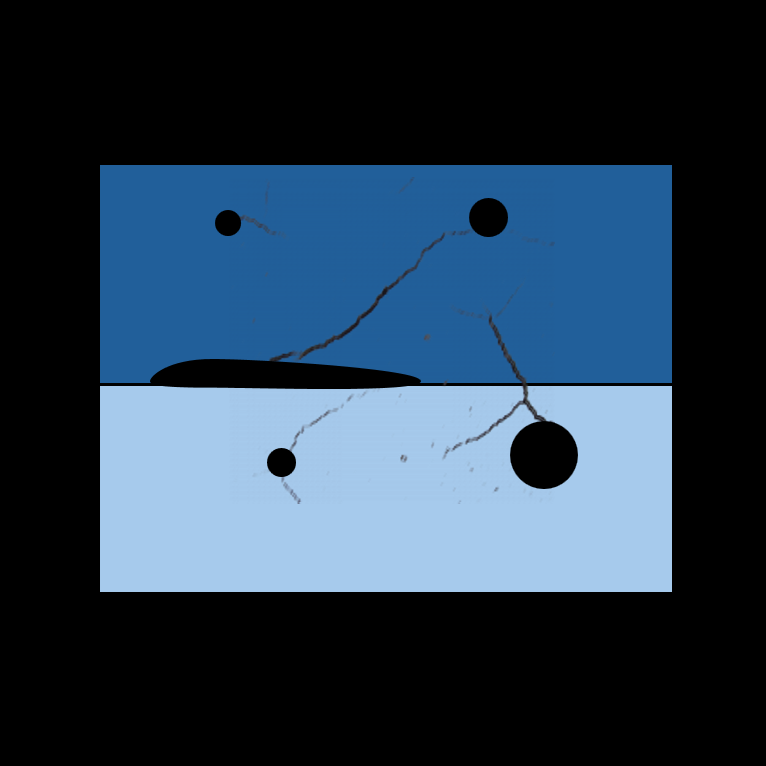

Cracks, defects, delamination, and corrosion

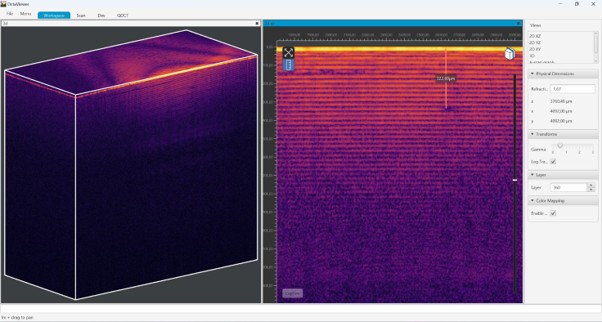

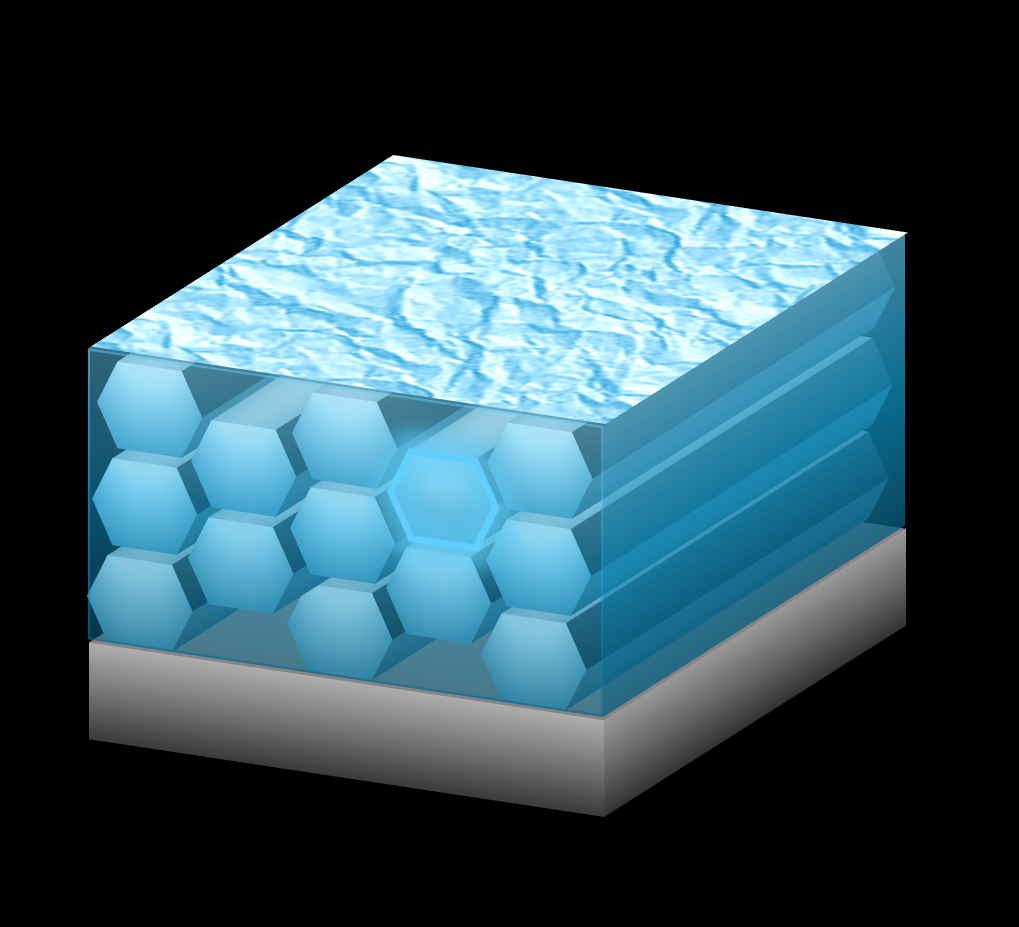

3D structures, particle dispersion, grain sizes

Typical Specifications

Operating wavelength: 3500–4500 nm
Depth resolution: <8 µm
Lateral resolution: <30 µm
Penetration depth: up to 2 mm
Scan speed: 3 kHz line scan rate
Optical power on sample: <15 mW
Beam delivery: flexible fiber-based probe

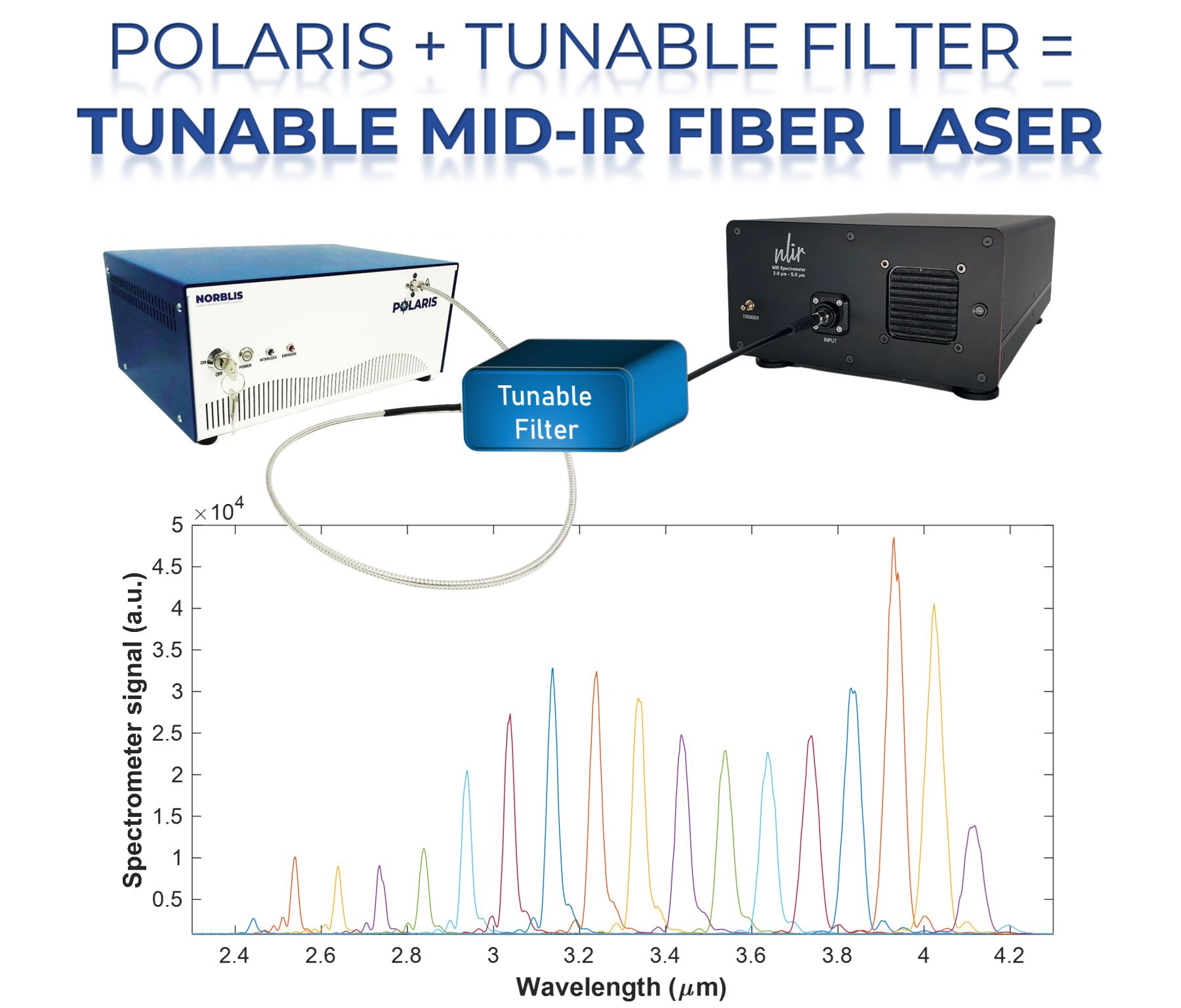

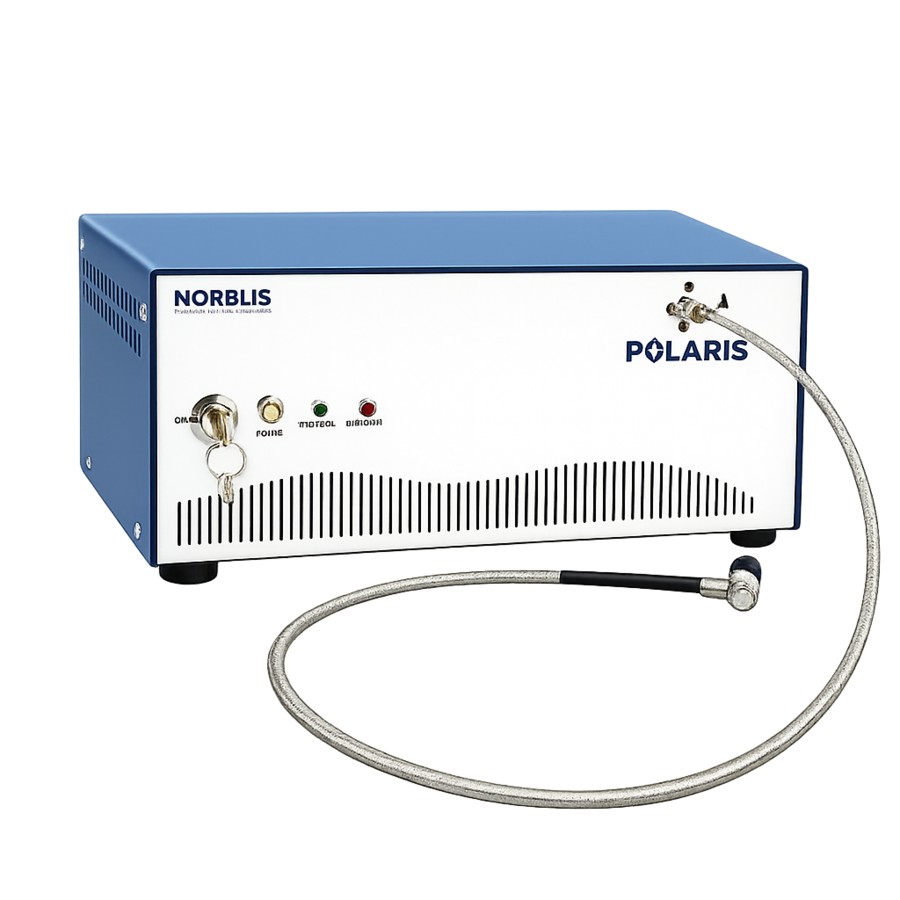

Mid-Wave Mid-IR Supercontinuum Laser

POLARIS

Mid-infrared supercontinuum laser designed for compactness and robustness. Use as a stand-alone or for OEM integration. Applications include atmospheric trace gas sensing, multi-species spectroscopy, optical coherence tomography, microspectroscopy, waveguide and materials characterization.

Key Features

Compact and robust, built for integration
Flexible, armored fiber cable
High brightness, collimated laser beam
Options for triggering, controls, interface

Typical Specifications

Operating wavelength: 1000–4600 nm
Average output power: 800 mW
Pulse repetition rate: 3 MHz
Power stability*: ± 2% over 8 hours
Dimensions: 320×230×130 mm³

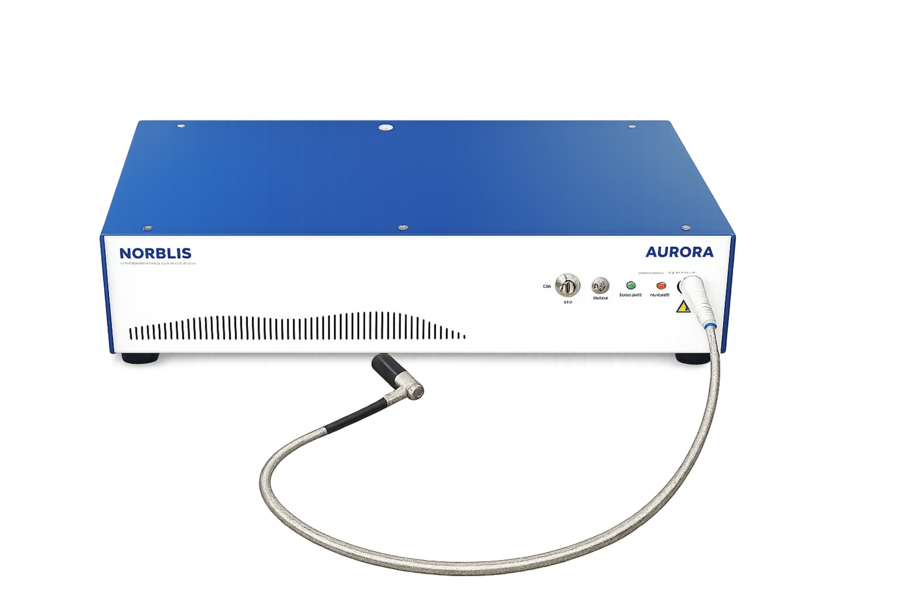

Long-Wave Mid-IR Supercontinuum Laser

AURORA

Mid-infrared supercontinuum laser designed for state-of-the-art bandwidth in the molecular fingerprint region. Unbeatable combination of output power and bandwidth in the LWIR region from an optical fiber laser. Applications include atmospheric trace gas sensing, multi-species spectroscopy, optical coherence tomography, microspectroscopy, waveguide and materials characterization.

Key Features

State-of-the-art Mid-IR coverage
Flexible, armored fiber cable
High brightness, collimated laser beam
Options for triggering, controls, interface

Typical Specifications

Operating wavelength: 2000–10000 nm
Average output power: >40 mW
Pulse repetition rate: 3 MHz
Power stability*: ± 2% over 8 hours
Dimensions: 500×300×130 mm³

· Get a Quote · Contact Sales

DTU CLEAN ROOM

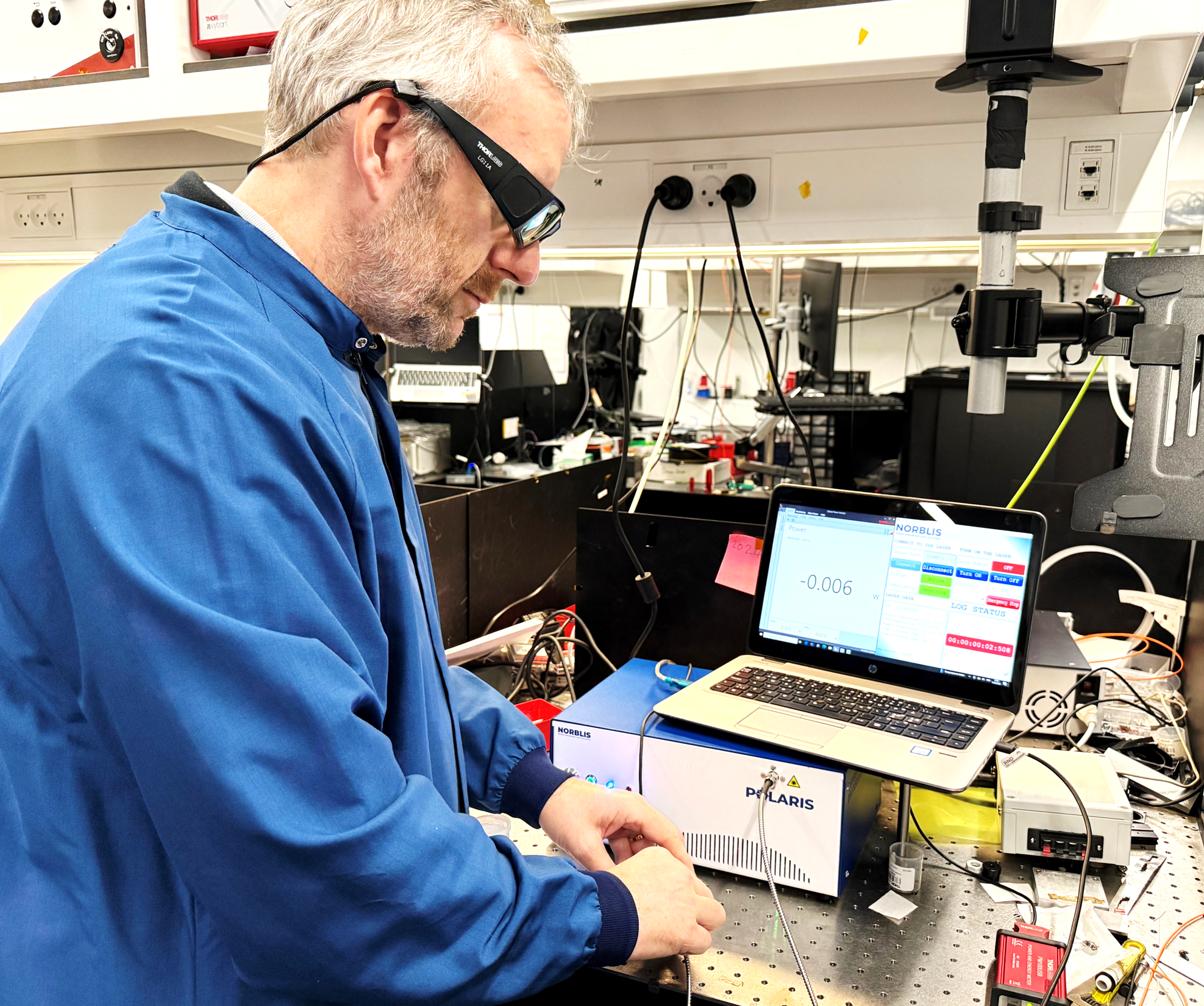

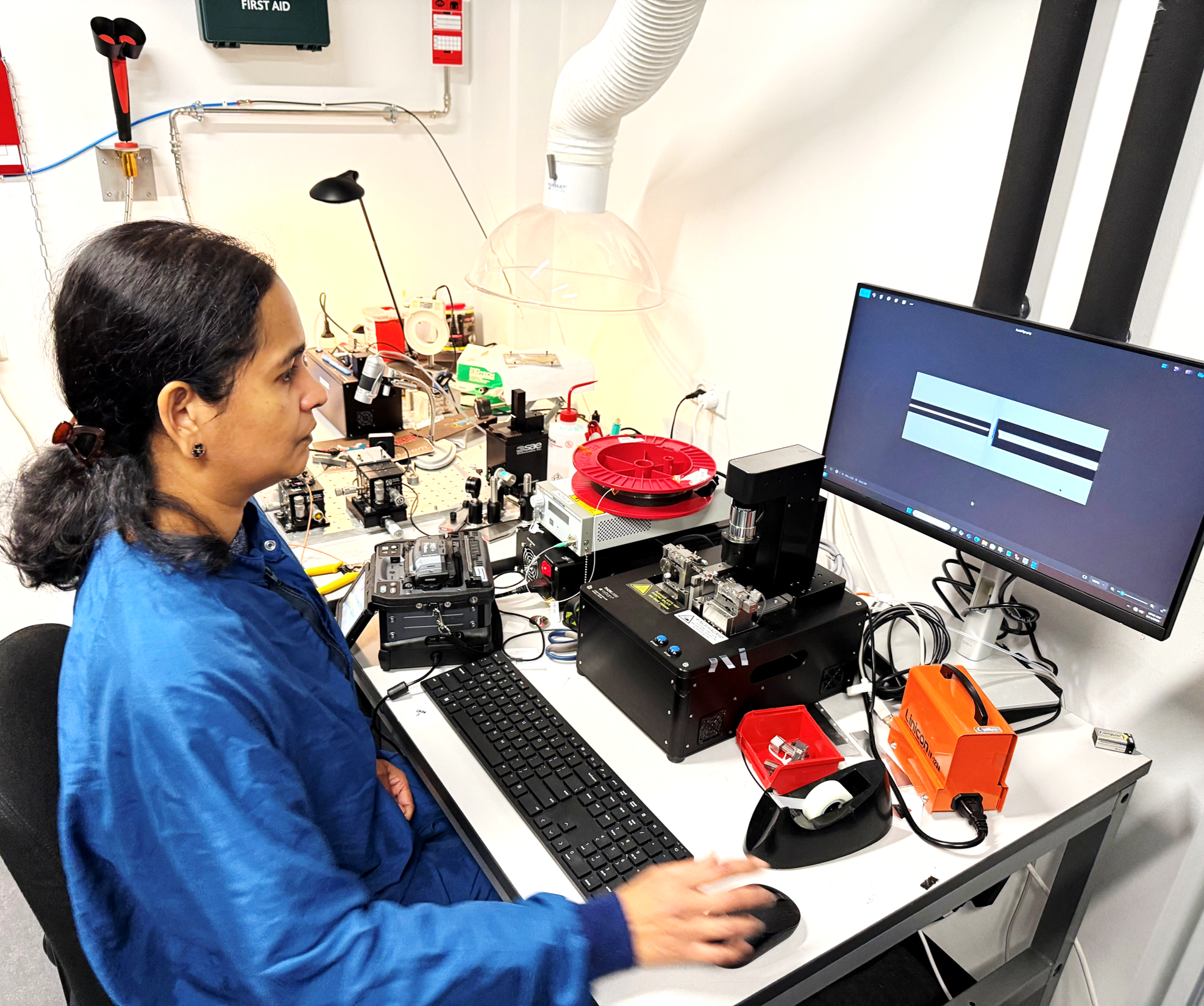

PHOTONICS LAB

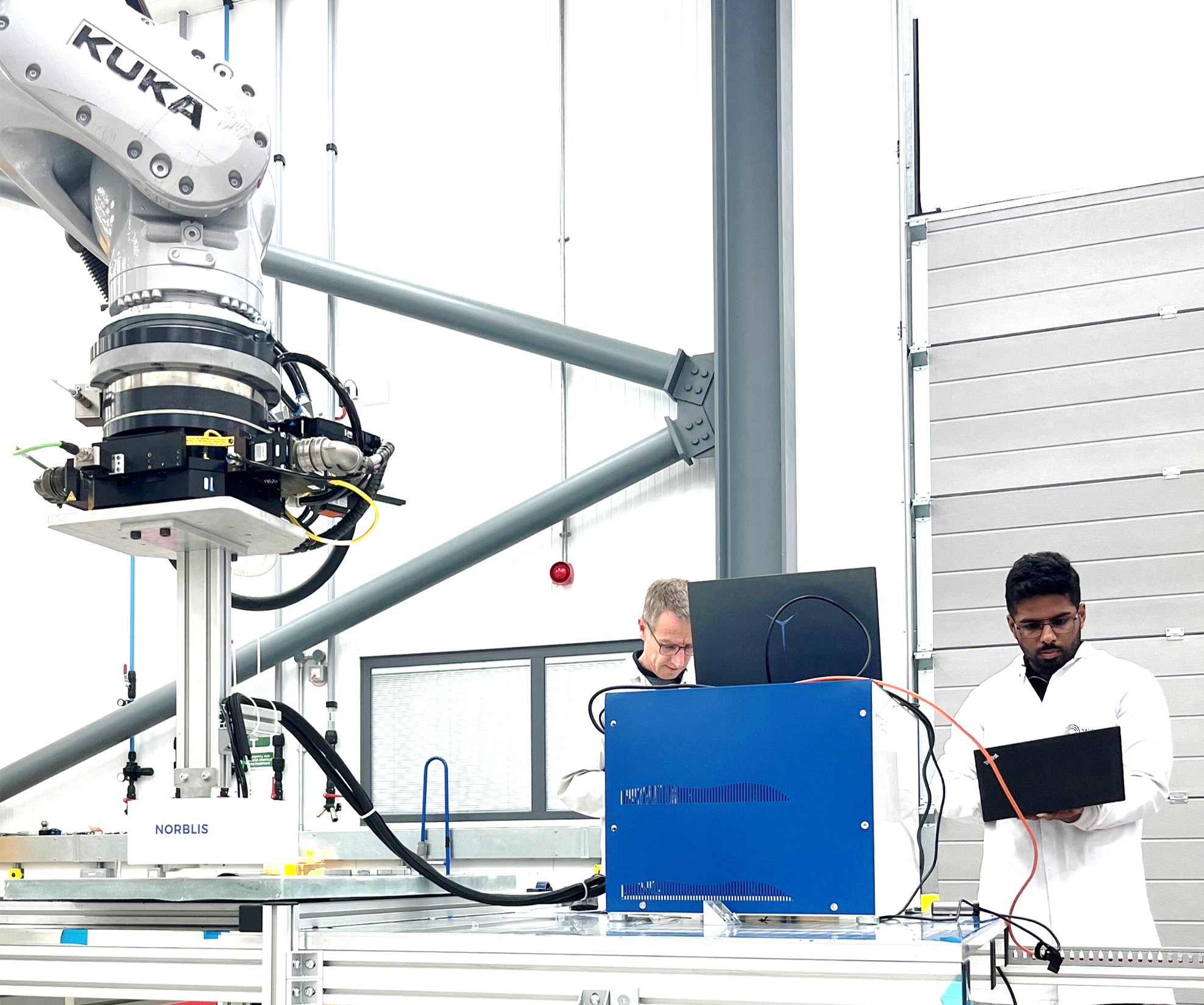

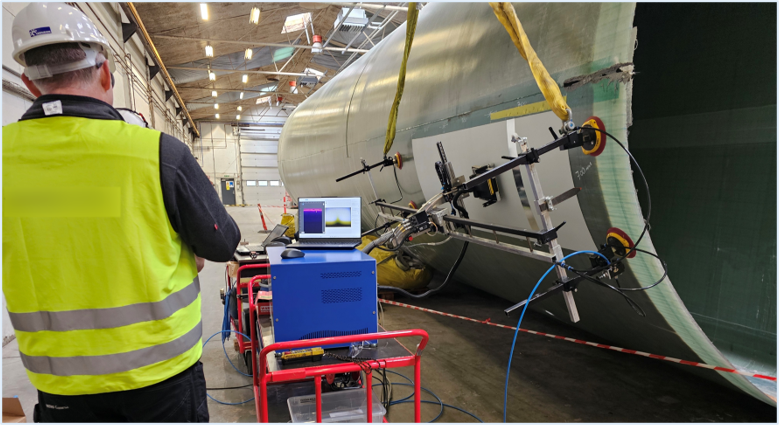

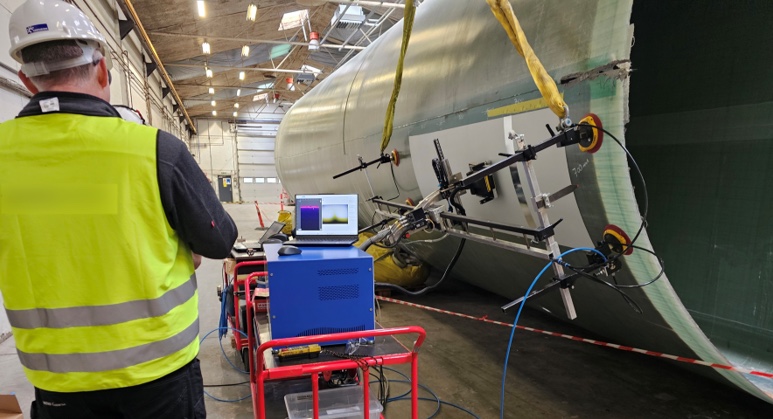

FIELD TESTING

Research Network

BUILT AT THE
FRONTIER OF SCIENCE

From DTU clean-room labs to international research consortia, NORBLIS technology is developed at the intersection of academic excellence and real-world application.
